Case 188 (G188D) 3.1L Diesel L4 Inframe-Overhaul Engine Rebuild Kit

  • Availability:
  • OEM Number: CAS188DKIT
  • Brand: Reliance
    Brand Info x Close Reliance

    Every Reliance part is produced to exacting standards to ensure the same or better reliability as the original part. In fact, for older engines current technology is often so improved that the part we make available today may actually be better quality than the same part used to assemble the engine originally.

    New and remanufactured internal engine parts, complete cylinder heads and long block assemblies for agricultural and industrial applications supplied by RPP are warranted to be free from defects in material and workmanship under normal service and operating conditions for a period of one year from the date of installation without limitation on miles or hours of operation.

    Engine overhaul kits for heavy-duty on-highway applications supplied by RPP are warranted to be free from defects in material and workmanship under normal service and operating conditions for a period of two years from the date of installation without limitation on miles or hours of operation.

    Remanufactured clutch and non-engine parts are warranted to be free from defects in material and workmanship under normal service and operating conditions for a period of six months from the date of installation without limitation on miles or hours of operation.
This item ships for free (US only, excluding AK & HI)

Please choose your customizations:

Kit Type:

* denotes required field

Rod Bearing Sizes*
Main Bearing Sizes*
Free Ground Shipping
Free Ground Shipping Info x Close

This product qualifies for free ground shipping.

Free Shipping is only available in the United States (48 States).

Other shipping methods available at additional costs.

Additional fees apply to AK, HI and Canada.

$720.73 Price may change upon customization above.

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

PAYPAL CREDIT

Fast Shipping
With warehouses across the US, we ship quickly and efficiently.

Expert Advice
Expert tech advice before and after your purchase.

High Quality Parts
Our parts meet and exceed the OEM specifications.

Details:

The Case G188D engine is a four-cylinder diesel engine found in several Case machines. This page has kits for both small-sleeve-flange (early) and large-sleeve-flange (late) engines. Select which you have, and whether you want the inframe or overhaul kit, in the Kit Type dropdown above the Add to Cart button. The part number and price will change to reflect the current selection. The differences in contents between the inframe and overhaul kit are listed out further down on this page. Click Here For Case G188D Torque Specs

Please Note: It is common to have an engine in the early serial number break that has had the block bored to accept the larger sleeve. For this particular application, we always ask our customers to measure their cylinder sleeve flange's outer diameter.

Engine Kit Technical Information:
Early Model - Before Serial No. 2,610,996 uses a 4.458" Sleeve Flange Diameter (Small Flange)
Late Model - After Ser No. 2,610,996 uses a 4.537" Sleeve Flange Diameter (Large Flange)

Model Fitments:
• Case Combine w/ G188D Engine. Models 600, 660
• Case Wheel Tractor w/ G188D Engine. Models 430, 440, 441, 470, 480, 530, 570, 580B, 630
• Case Windrower w/ G188D Engine. Models 1150, 1155, 1255
• Case Crawler Tractor w/ G188D Engine. Models 310E, 310F, 310G, 350, 450
• Case Loader Tractor w/ G188D Engine. Models W3, W5A, 480C, 580C, 1845

Parts Included in the Inframe Engine Overhaul Kit (AGKITS Part Numbers):

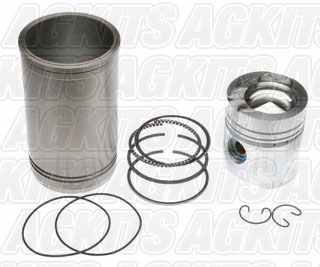

• Four (4) Cylinder Kits – Includes Piston, Rings, Pin, Sleeve/Liner (Standard Part # 5A151995)
• Four (4) Connecting Rod Bearing Pairs  (Standard Part # 5A46050)
• One (1) Main Bearing Set (Standard Part # RP928)
• One (1) Head Gasket Set (Part # 5A189543)
• One (1) Oil Pan Gasket (Part # 5A189524)

Parts Included in the Major Overhaul Engine Kit (AGKITS Part Numbers):
• Four (4) Cylinder Kits – Includes Piston, Rings, Pin, Sleeve/Liner (Standard Part # 5A151995)
• Four (4) Connecting Rod Bearing Pairs  (Standard Part # 5A46050)
• One (1) Main Bearing Set (Standard Part # RP928)
• One (1) Full Gasket Set (Part # RP321229)

OEM Part Number Cross Reference (Standard):
• Piston (Standard Part # A38424)
• Cylinder Kit (Part # A51995)
• Rod Bearings (Standard Part # A36500, A46050, G11818, G11982)
• Head Gasket Set (Part # A155589, A189543, A41425, A43193)
• Oil Pan Gasket (Part # A189524, A35300, A40713)
