Allis Chalmers G138 Inframe-Overhaul Engine Rebuild Kit

  • OEM Number: AC138KIT
  • Brand: Reliance
    Brand Info x Close Reliance

    Every Reliance part is produced to exacting standards to ensure the same or better reliability as the original part. In fact, for older engines current technology is often so improved that the part we make available today may actually be better quality than the same part used to assemble the engine originally.

    New Reliance Power Parts replacement engine parts are covered for two years from date of installation. There is no limitation on the number of hours/miles of operation within the two year period. Remanufactured engine parts are covered for 1 year with no hour/mile limitation. New clutch and non-engine parts are covered for 1 year with no hour/mile limitation. Remanufactured clutch and non-engine parts are covered for 6 months with no hour/mile limitation..
This Engine Kit Ships Free (Contiguous US Only)

Please choose your kit customizations:

Kit Type:

* denotes required field

Rod Bearing Sizes*
Main Bearing Sizes*
Free Ground Shipping
Free Ground Shipping Info x Close

This product qualifies for free ground shipping.

Free Shipping is only available in the United States (48 States).

Other shipping methods available at additional costs.

Additional fees apply to AK, HI and Canada.

$634.40
Price may change upon customization.

Fast Shipping
With warehouses across the US, we ship quickly and efficiently.

Expert Advice
Expert tech advice before and after your puchase.

High Quality Parts
Our parts meet and exceed the OEM specifications.

Details:

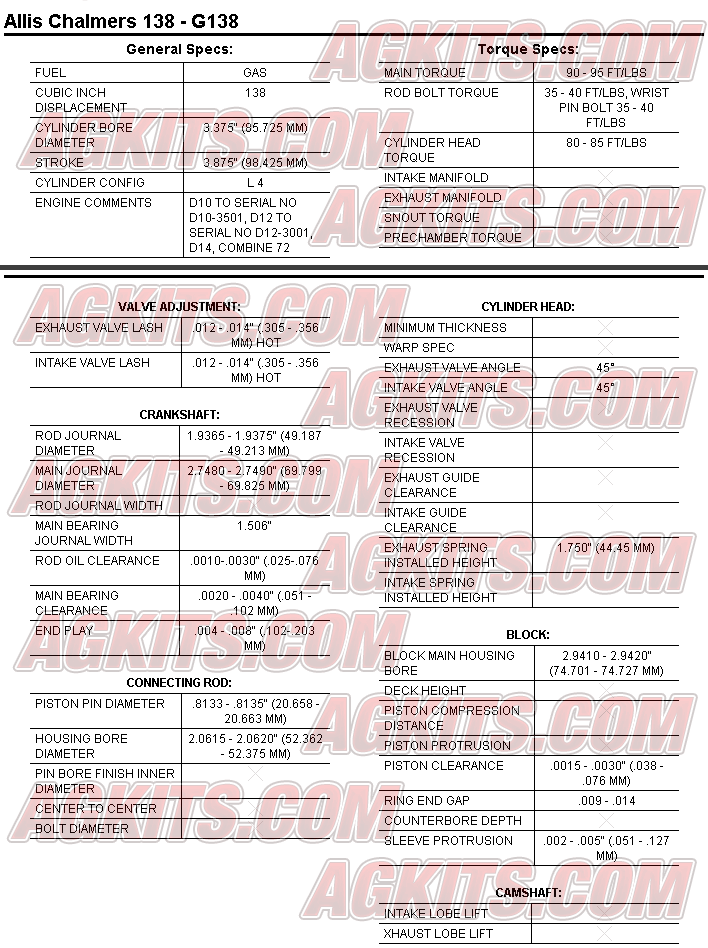

Engine Kit Technical Information:
Overbore Kit 3.375" bore to a 3.500" bore. This engine kit turns a G138 into a G149

Engine Kit Fits:
Allis Chalmers Combine
w/ G138 Engine. Model 66 Big Bin, 72, 90
Allis Chalmers Wheel Tractor
w/ G138 Engine. Models D10 to Ser. No. D10 to Ser. No. D10-3501, D12 to Ser. No. D12-3001, D14, D15 Series I up to serial number 9000, I-40 .
Allis Chalmers Crawler
w/ G138 Engine. Model H3 up to serial number 6958
Allis Chalmers Forage Harvester
w/ G138 Engine. Model 50
Allis Chalmers Forklifts
w/ G138 Engine. Model RT40

Parts Included in Inframe Kit:
(4) Sleeve Assembly (Sleeve, Piston, Wrist Pin, Piston Rings)

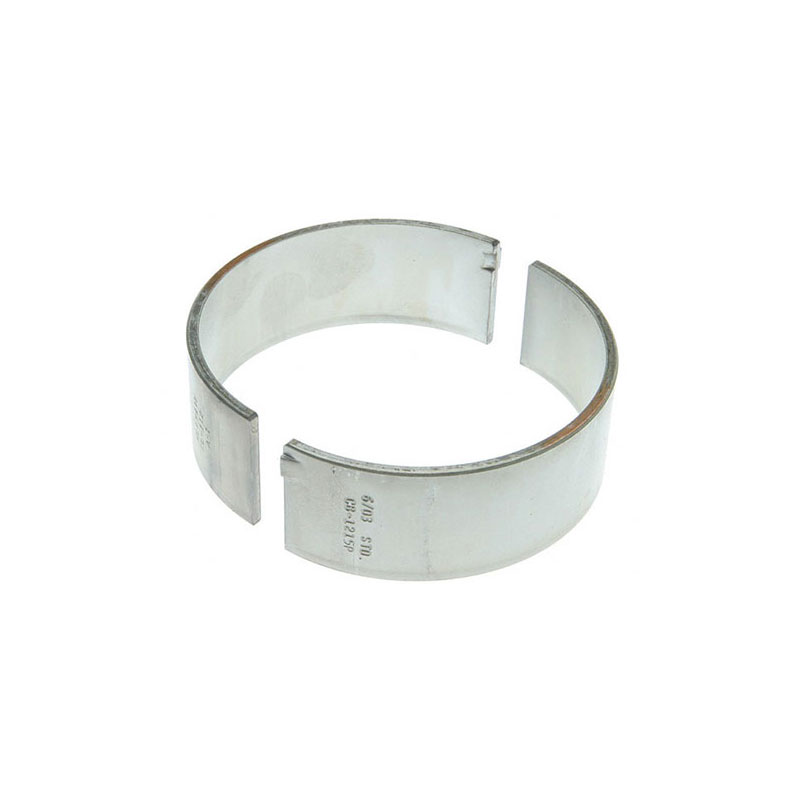

(4) Connecting Rod Bearing Pair

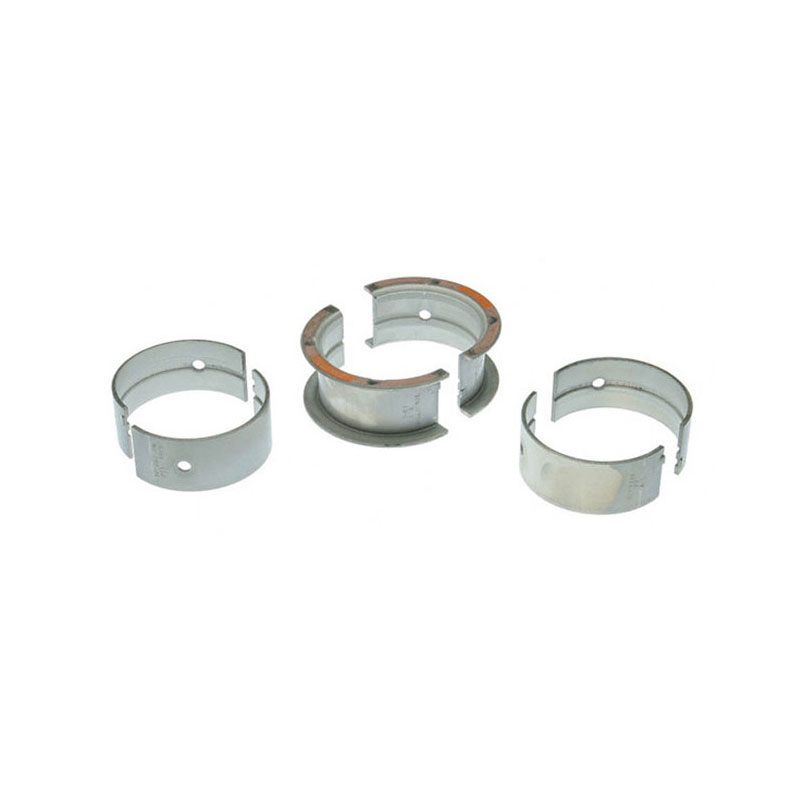

(1) Main Bearing Set

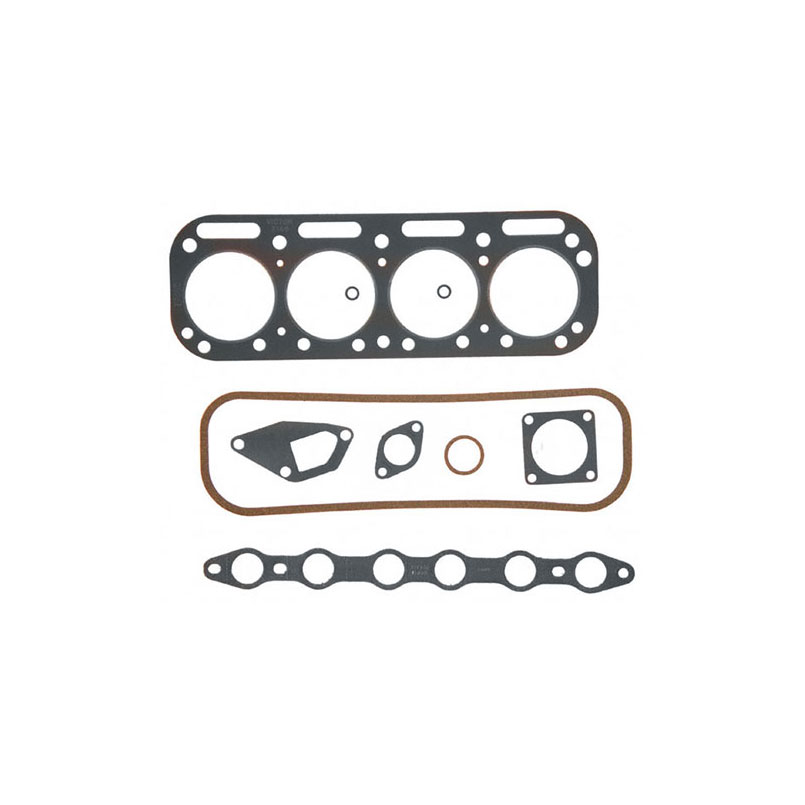

(1) Upper Gasket Set

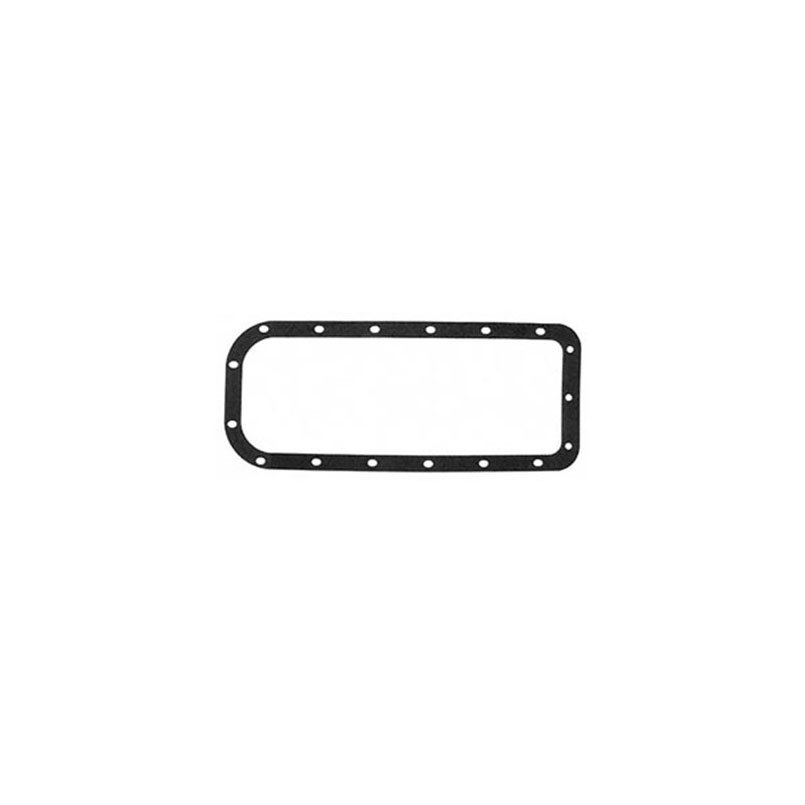

(1) Oil Pan Gasket

Parts Included in Major Overhaul Kit

(4) Sleeve Assembly (Sleeve, Piston, Wrist Pin, Piston Rings)
(4) Connecting Rod Bearing Pair
(1) Main Bearing Set

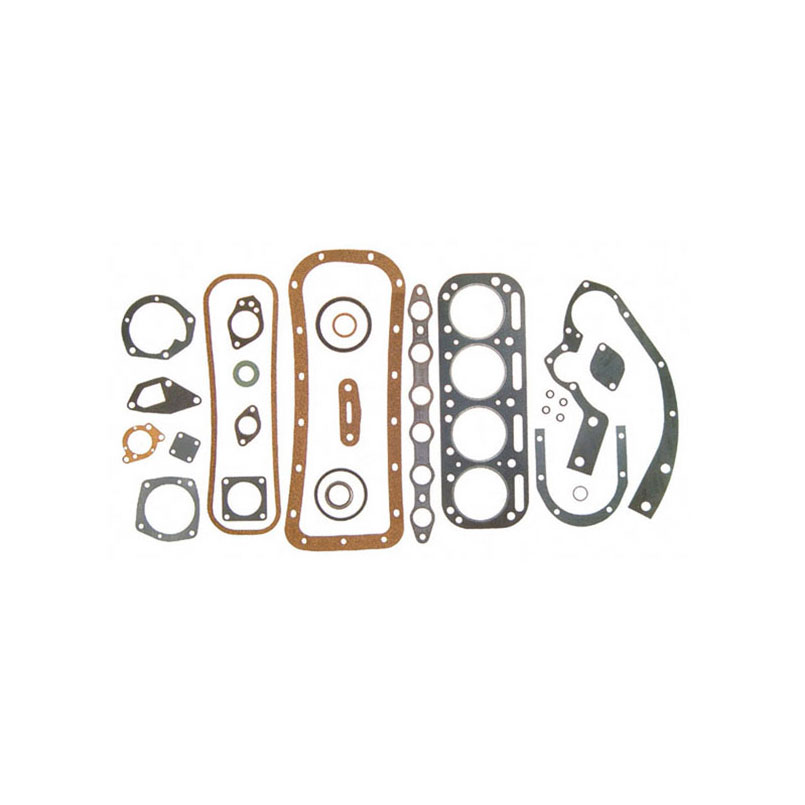

(1) Full Gasket Set
